Classroom Interactive Whiteboard System Multimedia All-in-one PC with Touch Panel Central Controller

Classroom Multimedia All-in-one PC Slim with Touch Panel Central Controller

Brief Introduction:

The Multimedia All-in-One PC is a combination of a computer,a central controller,a digital visualizer, keyboard and touch pad. Installed beside whiteboards, it allows the instructors to easily control the speaker, computer, projector by pressing the keys on the central controller panel. It makes interactive teaching system easier and convenient.

Applicated fields:
Education, Conference,Training,Military

Features:

1. Highly integrated and multi-functional for easier teaching;
2. Compact design and space saving;
3. Built-in i3 PC ,touch panel central controller, high resolution visualizer ,hi-fi speaker
4. Built-in Patent keyboard and mouse pad;
5. Easy installation and maintenance;
6. Quick start,one-key to power on/off  all devices;
7. Projector power-off delay protection.
8. Compatible with all types of whiteboards and projectors.

Specificaitions:

Structure	1.Dimension: 1280x260x80mm 2. Color: Black/white 3. Structure Features: Slim and compact design,the top panel is fully closed,with side cable holes,dust-proof 4. Lock system: Machanical keys 5. Top Interface: Lan port,VGA out,power in/out,RS232,IR , 4 USB port,Audio out ,Video out, optional HDMI
PC	1. Intel  I3  CPU 2. Storage: 4GB RAM,  500GB HDD 3. OS: Windows 7
Speaker	Power :20W*2 Resistance 4Ω, Sensitivity 85DB, Frequency response:100HZ-18KHZ
Central Controller	1. Touchable panel 2. Function keys and ineterfaces: Power on/off, Mute, Volume +/-,Projector on/off, PC on/off, audio out, MIC, USB*4,   VGA 3.Special Features: Quick Start,One-key to switch on/off system Projector power-off delay protection
Visualizer	1.Resolution: 5.0 Mega pixels (2592*1944) 2. Scan Size: A4 3. Scan object: File ,document, books, text, real object, face etc 4.Light Resource: High brightness LED, natural light 5. Software feature: 1) Whiteboard software : Drawing,writing,marking,rotating,zooming... 2) Take pictures/Videos 3) Scanning, support OCR  4) Screen compare
Keyboard	Built-in Keyboard in  Laptop Type  (Patent)
Special Accessories	1. Wireless Microphone: 2.4G RF with LCD screen, wearing by handhold or clipping on clothes 2. All-in-one Remote Controller (Patent): Three functions all in one= Remote controller+laser pointer+air mouse  (Optional)
Packing info	1429x290x120mm /17kg

Applications:

The hot selling all-in-one interactive whiteboard systems regarding this product:

•  Multimedia all in one PC + Interactive whiteboard + projector
•  Multimedia all in one PC + 65" LED interactive display
•  Multimedia all in one PC + traditional white board + interactive projector
•  Above 3 systems with sliding green or white board.

Application images with SMART board,projector and green board :

Contact information:

Shenzhen Fangcheng Teaching Equipment Co.,ltd
Contact Person : Ms. Kerry
Email: kerry@ei-whiteboard.com
Skype: eiwhiteboard
Website: www.ei-whiteboard.com
Tel: +86-755-29645993
Fax: +86-755-29768564
Address: 3rd Floor, Bldg 5, Dongfangming Industrial Park, Bao’an 33rd District, Shenzhen ,Guangdong,China

EIBOARD Multimedia all-in-one PC Makes Teaching Easier and Smarter!

Multimedia all-in-one PC Makes Teaching and Presentation Easier and Smarter!

Among the current education interactive solutions, more and more classrooms are installed with All -in-one  LED/LCD interactive display with built-in PC.

The all-in-one LED/LCD interactive display is with HD touch screen, easy installation and multi screen sizes, also no need projector ,external PC and speaker.  It's more and more popularized and widely used for both education and conference rooms.

But the solution meets a problem, it's the maintenance rate of built-in PC.
As known that all the LED/LCD touch screen is with long years' service lifetime, but the service time of a built-in PC is usually several years and easy to be under maintenance needs.  And, with such a big weight will be too hard for any person to carry.  So the maintenance of built-in PC will be a big problem.


Here, the EIBOARD Multimedia all-in-one PC will help to solve this problem.

Multimedia all-in-one PC is a central control device, combined with a computer, a speaker and PA system, a central control system, a digital visualizer, a patent keyboard+mouse pad, and a patent all-in-one wireless controller.
It's widely used with all types of Interactive whiteboards, LED interactive display and (interactive) Projector in the field of education interactive and presentation solutions.

See the below applications as reference:

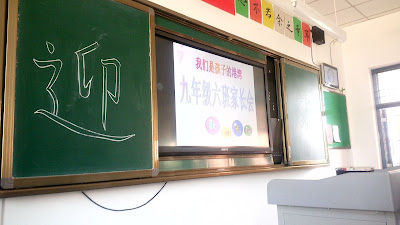

1) EIBOARD Multimedia all-in-one PC used with LED Interactive Display and Sliding Green Board in school classrooms:

2) EIBOARD Multimedia all-in-one PC used with LED Interactive Display:

The EIBOARD Multimedia all-in-one PC used with LED/LCD interactive display without PC will help us have more functions:

1) Easy maintenance of PC and long service time of full set equipment

2) Much better sound effect

3) Built-in document camera

4) Central control system

5) Keyboard and mouse pad built-in

6) Wireless microphone

7) All-in-one remote control

EIBOARD Multimedia all-in-one PC will make the teaching/presentation EASIER and SMARTER

For any questions, please kindly contact us freely. Thanks!



Contact information:

Shenzhen Fangcheng Teaching Equipment Co.,ltd
Contact Person : Ms. Kerry
Email: kerry@ei-whiteboard.com
Skype: eiwhiteboard
Website: www.ei-whiteboard.com
Tel: +86-755-29645993
Fax: +86-755-29768564
Address: 3rd Floor, Bldg 5, Dongfangming Industrial Park,   Bao’an 33rd   District,  Shenzhen ,Guangdong,China

EIBOARD 4-Touch optical interactive whiteboard

EIBOARD 4-Touch Optical Interactive Whiteboard

Optical IWB
Model：FC-84DGF

*Positioning sensor technology: CCD Optical imaging
*Resolution: 32767x32767, Cursor speed：180/ms
*Interface: USB2.0, international standard communication distance: 1.5m, support 10m and 15m.
*Support Multi-touch and control under Win 7 by any opaque objects
 *Board material: honeycomb aluminum alloy
 (anti-glare, dust-proof, water-proof, anti-scratch, anti-fire ,ware resistance)
